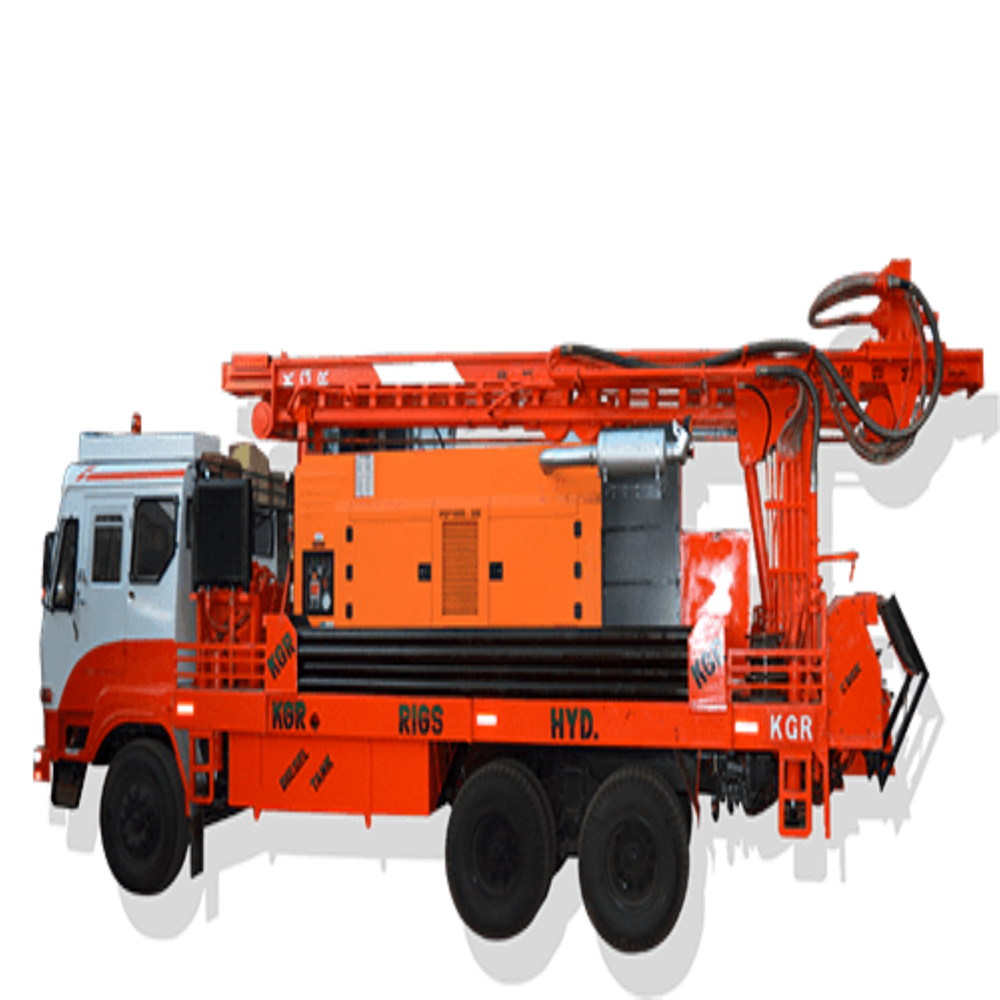

Dth Drilling Rig

Name: Dth Drilling Rig
Brand: KGR INDUSTRIES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Dth Drilling Rig Specification

Table Size
Applicable for Drill Rod Intake

Cutting Area
Dependent on Drill Pipe and Bit Size

Motor Power
Driven by Main Diesel Engine

Frequency
N/A (Mechanical Drive)

Condition
New

Spindle Speed
Variable (Hydraulic Control)

Dimension (L*W*H)
10900 mm 2500 mm 3600 mm (Approx.)

Machine Type
Hydraulic DTH Drilling Rig

Features
Heavy Duty Construction, High Drilling Capacity, Easy Operation, Low Maintenance, Mobile Mounted

Noise Level
85-95 dB (Approx.)

Diameter
Drilling Diameter: 100 mm to 450 mm

Product Type
DTH Drilling Rig

Material
High strength steel and reinforced chassis

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Hydraulic

Voltage
24V (Control System)

Power
160 HP - 300 HP (Depending on Model)

Power Source
Diesel Engine

Weight (kg)
17000 to 22000 kg (Approx.)

Capacity
200 - 400 Meter Drilling Depth (Depending on Formation)

Color
Orange/Red with White (Standard Company Colors)

Usage & Applications
Water Well Drilling, Borehole Drilling, Mining Exploration, Geotechnical Investigation

Max. Lifting Capacity
12,000 - 15,000 kg (Depending on Mast Design)

Safety Features
Emergency Shut Down, Interlocks, Overload Protection

Fuel Tank Capacity
250 - 300 liters (Vehicle Dependent)

Drill Rod Length
3 meter / 4.5 meter rod options

Working Pressure
160 - 210 bar

Pull Down Force
Up to 9000 - 10500 kg

Feed System
Hydraulic Cylinder / Chain Feed

Travel Speed
Up to 75 km/h (Depends on vehicle chassis)

Hydraulic Oil Capacity
350 liters (Approx.)

Drilling Method
Down-The-Hole (DTH) Hammer Drilling

Rotation Speed
0 - 100 RPM (Adjustable)

Mounting
Truck Mounted / Tractor Mounted (Optional)

Compressor Required
Suitable for Air Compressor (Typically 600 - 1100 CFM, 200 - 350 PSI)

Mast Height
7.5 to 8.5 meters

About Dth Drilling Rig

Experience the Prime performance of our latest DTH Drilling Rig-now at a Reduced Price for a limited period. This Magnificent, truck or tractor-mounted rig, constructed from high-strength steel, is engineered for dominant efficiency in water well drilling, mining exploration, and geotechnical investigation. Designed for superior depth (200-400 meters) and power (160-300 HP), it features multiple rod and feed options, making it both versatile and robust. Don't miss this Last Chance to secure industry-leading capability, optimal safety, and easy operation-crafted for professionals by an acclaimed exporter, manufacturer, and supplier.

Versatile Application and Simple Direction of Use

The DTH Drilling Rig stands as a dominant solution for heavy-duty water well drilling, borehole work, and mining exploration. Designed for easy, semi-automatic operation, users position the machine at the drilling site, connect a compatible air compressor, and select the drilling depth and method. Its robust capacity and adjustable feed system allow for prime control, making it the preferred choice in geotechnical and industrial applications across various terrains.

Transparent Payment Terms and Quick Delivery Across Domestic Markets

Payment terms for our DTH Drilling Rigs are prime, with flexible options to suit your procurement processes. Once arrangements are finalized, rigs are carefully prepared and handed over to logistics partners for prompt, secure delivery. Most deliveries within domestic markets are completed swiftly after dispatch. Orders can be FOB from prominent ports, ensuring fast and efficient transfers. Each rig is delivered fully inspected, ensuring you start work with confidence.

FAQ's of Dth Drilling Rig:

Q: How does the down-the-hole (DTH) hammer drilling method work on this rig?

A: The DTH hammer drilling method delivers compressed air and percussive force directly to the bit, enabling efficient and rapid penetration into hard rock formations. The hydraulic system ensures stable rotation and feed, enhancing drilling precision and productivity.

Q: What are the primary applications for this DTH Drilling Rig?

A: This machine is ideal for water well drilling, borehole construction, mining exploration, and geotechnical investigation, thanks to its adjustable depth, variable drilling diameter, and robust material construction.

Q: When can I expect delivery after placing an order for the rig?

A: Delivery timelines usually depend on your location and order specifications. Most domestic market orders are processed and handed over for shipping promptly, ensuring fast and reliable service.

Q: Where can this DTH Drilling Rig be mounted and operated?

A: The rig offers flexible mounting options, suitable for truck or tractor installation. This adaptability allows operation in diverse environments, including remote, off-road, and industrial locations.

Q: What are the safety mechanisms included to protect operators?

A: The rig includes emergency shut down, interlocks, and overload protection, providing comprehensive operator safety during drilling operations and ensuring compliance with modern safety standards.

Q: Which power sources and control systems does this DTH Drilling Rig utilize?

A: The rig is powered by a robust diesel engine (160-300 HP), controlled via a reliable 24V hydraulic system. Its semi-automatic control offers high efficiency with minimal manual intervention.
